The common use for such application which is Snow makers and Pneumatic drives of 4D or 5D Cinema and so on as below:
Please refer to NAILI AZX and New HV series to get faster or clean air out anytime!
AZX rotary vane compressors(Click here) is compact design with high efficiency air out capacity to meet your demand in timing of Making snow indoor or outdoor! With upgraded imported Oil Separation filters and smart Oil-return system and even in low temperature the compressor will be not facing the water-condensation issue anymore!
Rotary Vane Technology:
Unlike piston compressors, rotary vane compressors use a rotor with sliding vanes that compress air as they rotate within a housing.

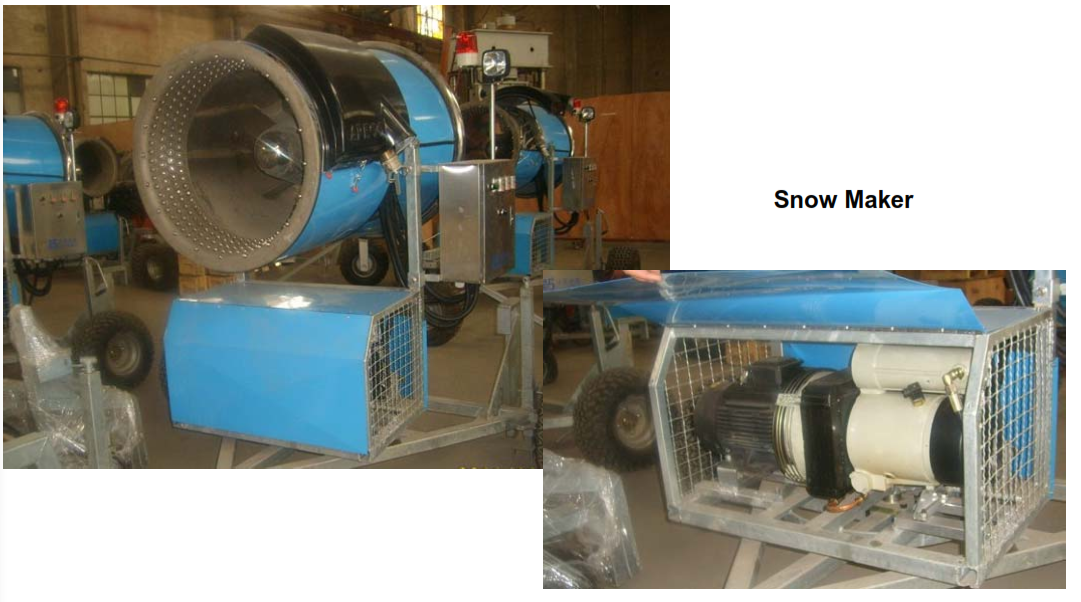

Snowmaking Application:
In snowmaking, the compressed air is used to atomize water, creating a fine mist that freezes into snow when propelled into the cold air.
Integrated Design:
Some snowmaking systems, like those from TechnoAlpin, utilize rotary vane compressors integrated directly into the snow guns.
Benefits:
Rotary vane compressors offer advantages like a compact design, quiet operation, and a consistent airflow, making them well-suited for snowmaking.
Centralized or Localized:
Snowmaking systems can employ either centralized compressor stations that supply compressed air to multiple snow guns or individual compressors integrated directly into each snow gun.
Some modern rotary vane compressors used in snowmaking are oil-free, which is beneficial for environmental reasons and reduces maintenance requirements.

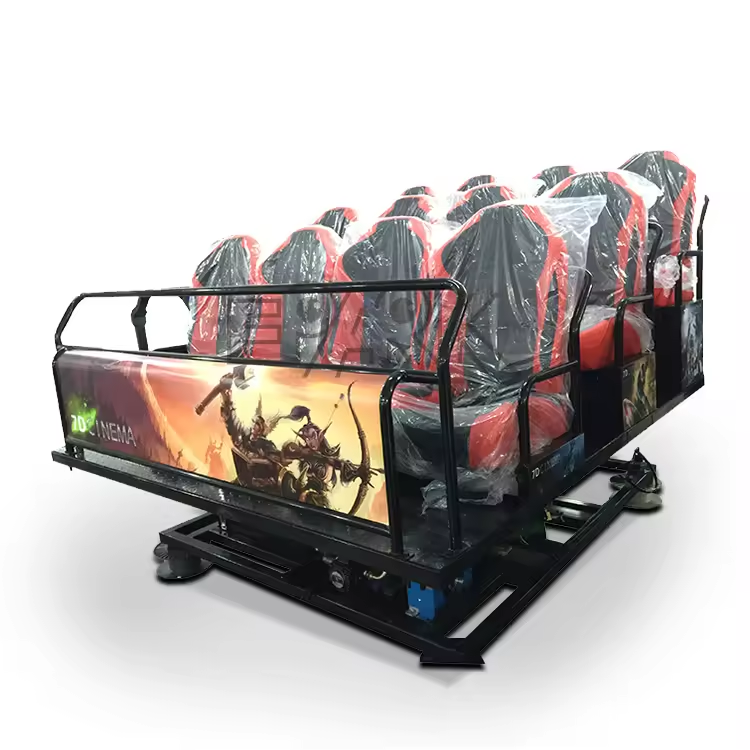

Pneumatic drives of 4D or 5D Cinema:
In 4D or 5D cinemas, pneumatic drive refers to the use of compressed air to power the movement of the seats, creating a more realistic and immersive experience for viewers. This technology allows the seats to move in sync with the on-screen action, simulating effects like bumps, drops, and vibrations. Pneumatic systems are a common choice for 5D cinema motion due to their ability to create quick and precise movements, as well as their cost-effectiveness.
Here's a more detailed explanation:
How it works:
Oil free compressor can provide Pneumatic systems utilize the Oil-freecompressed air to drive cylinders or bellows, which are then connected to the seats' motion bases. but considering the feeling of visitors, sometimes they will put the compressor in compressor room with larger capacity for driving more groups of set! Please check more information of oilfree or rotary vane on our website to get a suitable compressor!
Motion and Effects:
The compressed air is controlled by valves that respond to signals from the cinema's control system, allowing the seats to move in various directions and generate different sensations.
Advantages:
Pneumatic systems offer a good balance of cost, performance, and synchronization with the movie.
Comparison to other systems:
While hydraulic and electric systems also exist for 5D cinema, pneumatic is often favored for its relatively lower cost and faster response times.
